JET
TRAX
PWC LIFTS
for Pickup Trucks

JET TRAX, formerly
known as TOY TRAX, PWC lift is a unique way to transport your
PWC in the back of your pick-up.

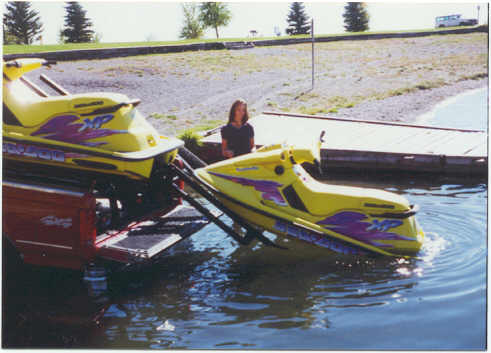

Float your PWC up to the cradle and tie-down the front. Then,
press the button to load in approximately 30 seconds. To unload,
pull back on the track to start the motion and let gravity and
the controlled reverse action of the winch lower your PWC to the
water.
- JET TRAX is precision welded utilizing
tooled fixtures. It is made from 1/8 inch thick, high quality
carbon steel. And, the black powder coated finish provides long
lasting rust protection.
- JET TRAX uses maintenance-free HMW nylon
rollers. No lubrication is required.
- JET TRAX carries the PWC at
24" to 26' above the bed of the truck.
- JET TRAX comes complete with All Weather
12v 2500 pound electric winch and cable remote control switch.
Flip the switch and watch your PWC load - safely, easily. Also
included is an all weather cable - one end plugs into a socket
on the Jet Trax, the other has 2 ring terminals that connect
to the truck's battery. Winch is set to go up and down slowly
for safety reasons - It takes about 30 seconds to unload the
watercraft from the back of a pickup truck.
- JET TRAX installs easily. The regular
length is 7' 10" long, and is no wider than the width of
the PWC. It will accommodate pwc's up to 131" long. A bar
measuring .5" x 3" x 48" is attached with two
bolts through the floor and bed frame at the front of the truck
bed. For attachment on Fords, existing holes are used. For all
other pickups, 2 holes are drilled through the floor and bed
frame. Two wires are run from a plug, mounted in this bar, to
the truck's battery. The lift together with the winch motor is
then attached and plugged into the bar. A shorty version of the
JetTrax is available for short bed trucks. PWC length is limited
to 117" on short bed trucks. Complete instructions are included
with each lift.
- JET TRAX removes easily. Simply, unbolt
the two .5" attach bolts, unhook the quick disconnect power
cable and slide the assembled lift from the bed of your truck.
Convenient rear wheels allow roll-away capability.
- To learn more about the Installation and Operation - PWC and
Motorcycle instructions are similar - Click
Here
 |
Single
or Double PWC Lift (Double Shown)
A simple and safe way
for one person to load and unload almost any PWC. Works with
Jet Skis through 3-Seaters.
PWC Lift
|
